• Solderless Breadboard+Terminal blocks

    Body material : EIC Brand, ABS plastic
    Surface : Colored printing
    Heat distortion temperature : 84℃
    Plate material : Metal
    Surface : Black
    Spring clip contact : Phosphor Bronze
    Finish : Nickel plated
    Contact life : 50,000 times
    lnsertion range : 0.4~0.7mm diameter
    E.I.C. blister card package
    RoHS Compliance
    Combines additional boards for larger breadboard available
    OEM & Own design is welcome

All product images are for reference only. Please refer to the actual product.
Please Click products below, and click Add to Inquiry List for inquiry.
Total of 2 results

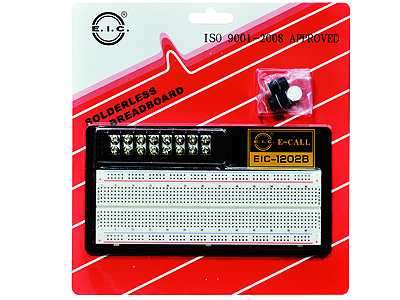

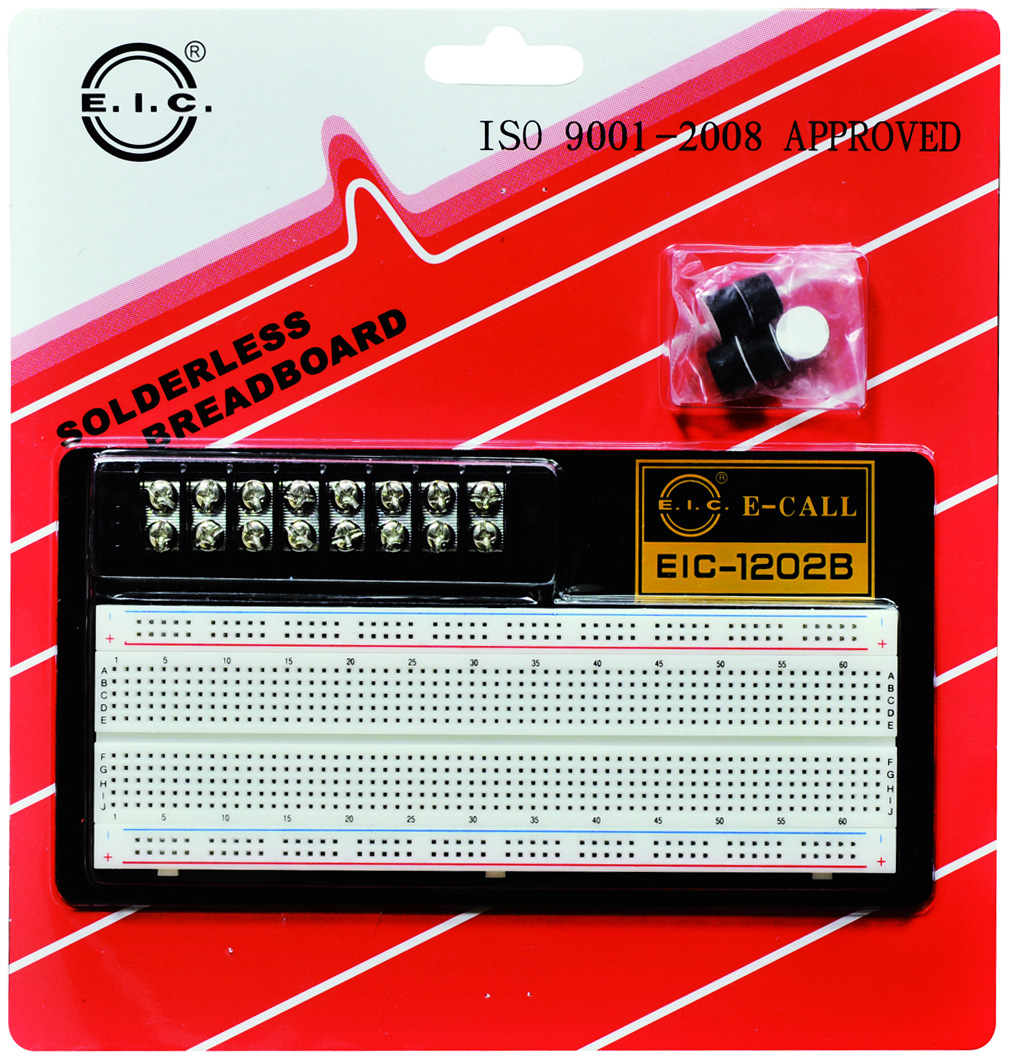

  • EIC-1202B
    • 830 Tie-point

    Specifications

    • Square Hole
    • Metal plate 183x95x0.8mm
    • Board 165.1x54.6x8.5mm
    • 1 Terminal strip, 630 tie-point
    • 2 Distribution strips, 200 tie-point
    • ABS plastic with color printed
    • 2x8 Terminal Blocks
    • 5 Cushions

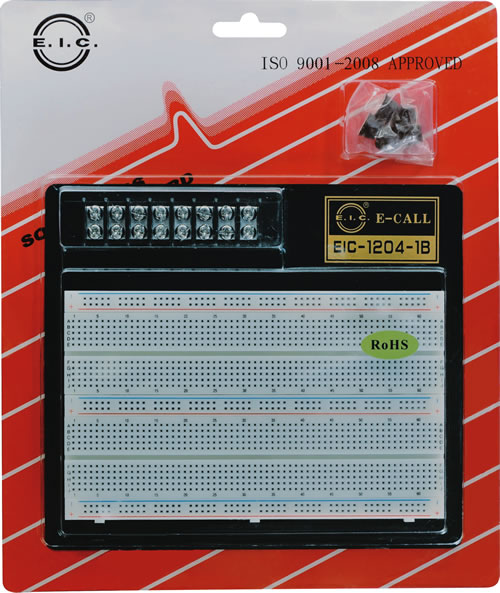

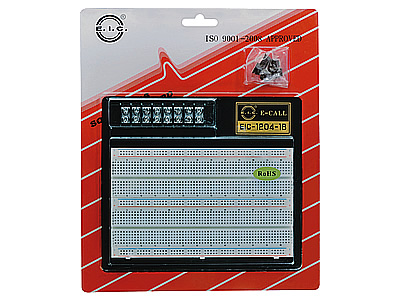

  • EIC-1204-1B
    • 1560 Tie-point

    Specifications

    • Square Hole
    • Metal plate 183x160x0.8mm
    • Board 165.1x99.7x8.5mm
    • 2 Terminal strip, 1260 tie-point
    • 3 Distribution strips, 300 tie-point
    • ABS plastic with color printed
    • 2x8 Terminal Blocks
    • 5 Cushions
      　
