• Body material : EIC Brand, ABS plastic & POM plastic
    Plate material:Metal
    Surface : black
    Heat distortion temperature :
     .84℃ for ABS plastic
     .150℃ for POM plastic
    Contact life : 50,000 times
    lnsertion range : 0.4~0.7mm diameter
    E.I.C. blister card package
    RoHS Compliance
    Combines additional boards for larger breadboard available
    OEM & Own design is welcome

All product images are for reference only. Please refer to the actual product.
Please Click products below, and click Add to Inquiry List for inquiry.
Total of 46 results

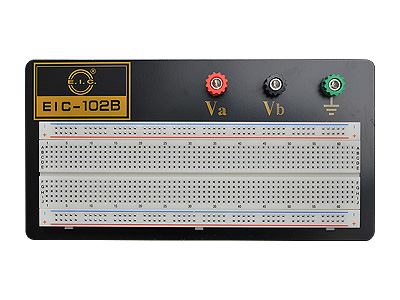

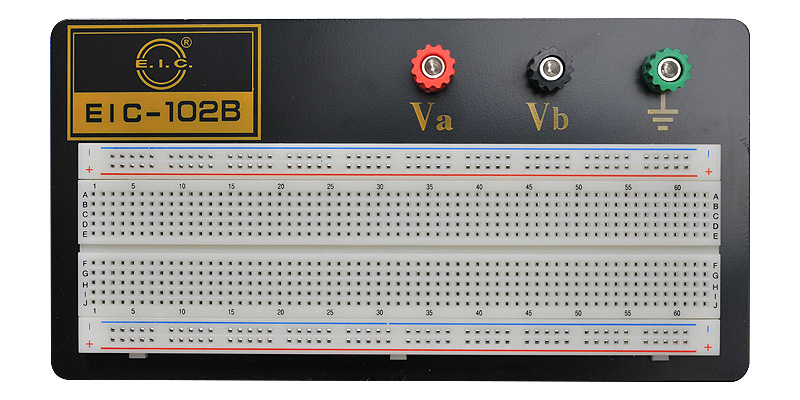

    • 830 Tie-point

    Specifications

    • Square hole
    • Metal plate 183x95x0.8mm
    • Board 165.1x54.6x8.5mm
    • ABS plastic with color printed
    • 1 Terminal strip, 630 tie-point
    • 2 Distribution strips, 200 tie-point
    • 3 Binding posts
    • 5 Cushions

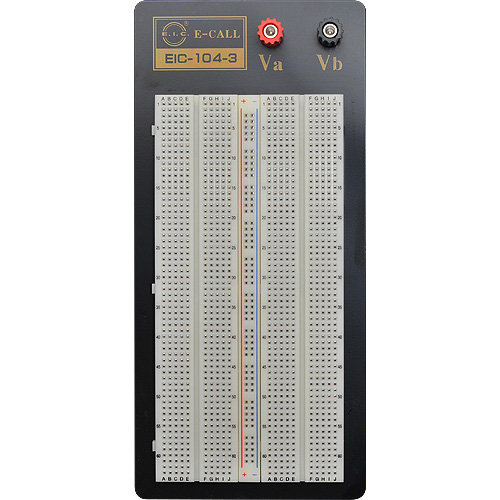

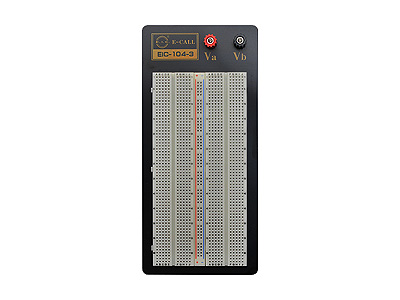

    • 1360 Tie-point

    Specifications

    • Square hole
    • Metal plate 215x100x0.8mm
    • Board 165.1x80.8x8.5mm
    • ABS plastic with color printed
    • 2 Terminal strips, 1260 tie-point
    • 1 Distribution strip, 100 tie-point
    • 2 Binding posts
    • 5 Cushions

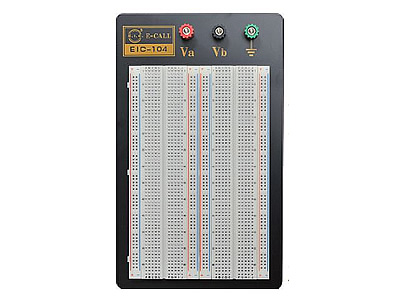

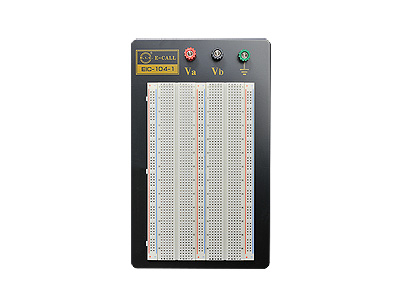

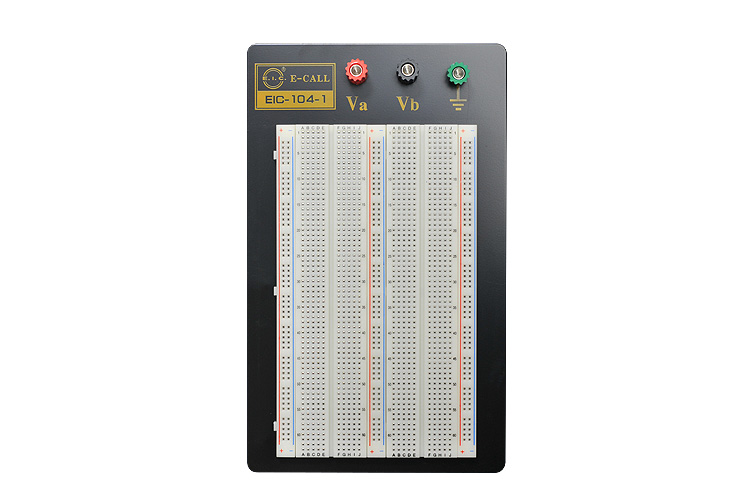

    • 1560 Tie-point

    Specifications

    • Square hole
    • Metal plate 215x130x0.8mm
    • Board 165.1x99.7x8.5mm
    • ABS plastic with color printed
    • 2 Terminal strips, 1260 tie-point
    • 3 Distribution strip, 300 tie-point
    • 3 Binding posts
    • 5 Cushions
    • 1660 Tie-point

    Specifications

    • Square hole
    • Metal plate 215x130x0.8mm
    • Board 165.1x109.3x8.5mm
    • ABS plastic with color printed
    • 2 Terminal strips, 1260 tie-point
    • 4 Distribution strip, 400 tie-point
    • 3 Binding posts
    • 5 Cushions

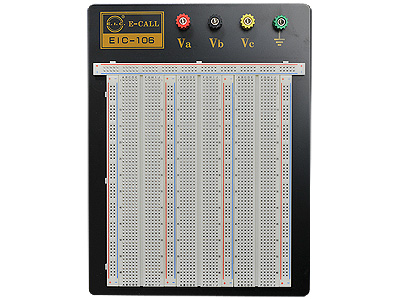

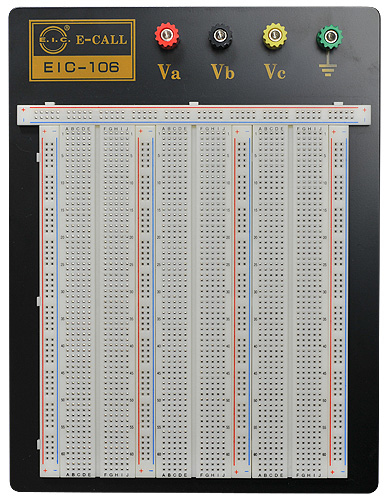

    • 2390 Tie-point

    Specifications

    • Square hole
    • Metal plate 230x175x0.8mm
    • Board 174.8x165.1x8.5mm
    • ABS plastic with color printed
    • 3 Terminal strips, 1890 tie-point
    • 5 Distribution strip, 500 tie-point
    • 4 Binding posts
    • 5 Cushions

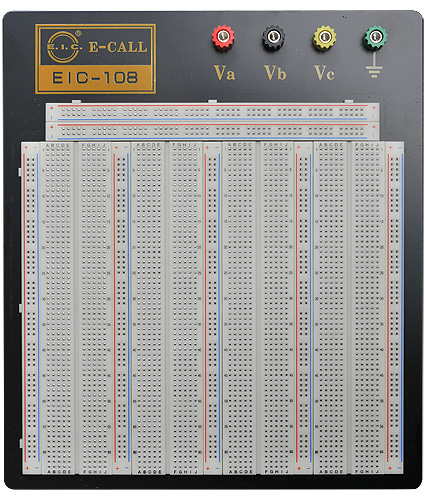

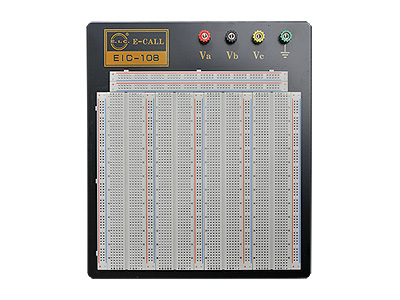

    • 3220 Tie-point

    Specifications

    • Square hole
    • Metal plate 240x210x0.8mm
    • Board 184.4x190x8.5mm
    • ABS plastic with color printed
    • 4 Terminal strips, 2520 tie-point
    • 7 Distribution strip, 700 tie-point
    • 4 Binding posts
    • 5 Cushions

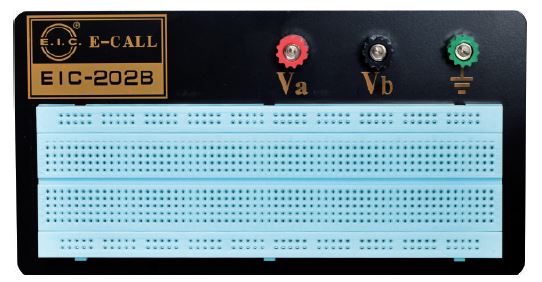

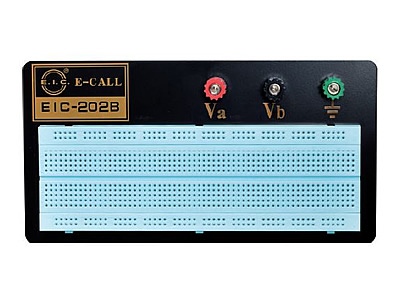

    • 830 Tie-point

    Specifications

    • Round hole
    • POM (Silicone) plastic, blue color
    • Heat distortion temperature: 150℃
    • Metal plate 183x95x0.8mm
    • Board 165.1x54.6x8.5mm
    • 1 Terminal strip, 630 tie-point
    • 2 Distribution strips, 200 tie-point
    • 3 Binding posts
    • 5 Cushions

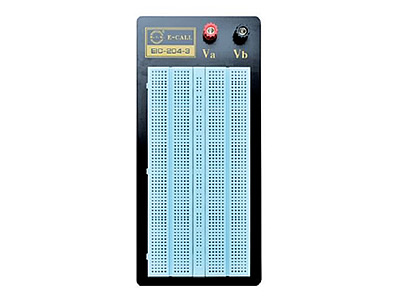

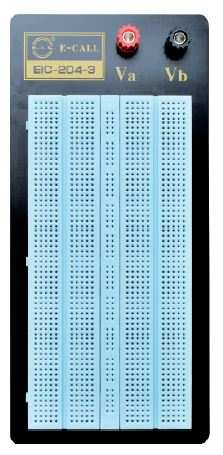

    • 1360 Tie-point

    Specifications

    • Round hole
    • POM (Silicone) plastic, blue color
    • Heat distortion temperature: 150℃
    • Metal plate 215x100x0.8mm
    • Board 165.1x80.8x8.5mm
    • 2 Terminal strips, 1260 tie-point
    • 1 Distribution strip, 100 tie-point
    • 2 Binding posts
    • 5 Cushions

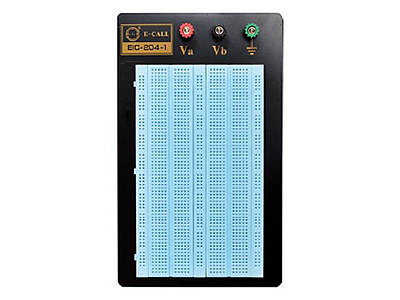

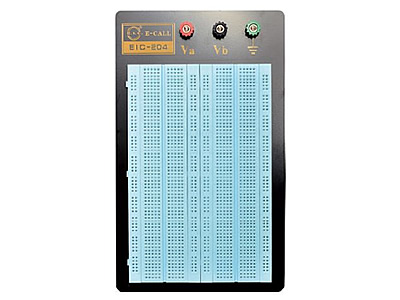

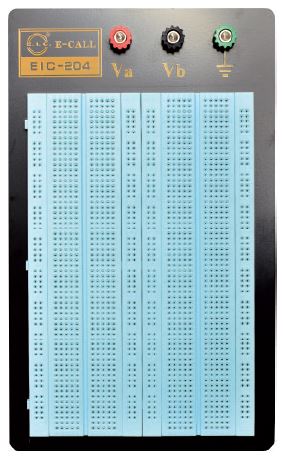

    • 1560 Tie-point

    Specifications

    • Round hole
    • POM (Silicone) plastic, blue color
    • Heat distortion temperature: 150℃
    • Metal plate 215x130x0.8mm
    • Board 165.1x99.7x8.5mm
    • 2 Terminal strips, 1260 tie-point
    • 3 Distribution strip, 300 tie-point
    • 3 Binding posts
    • 5 Cushions

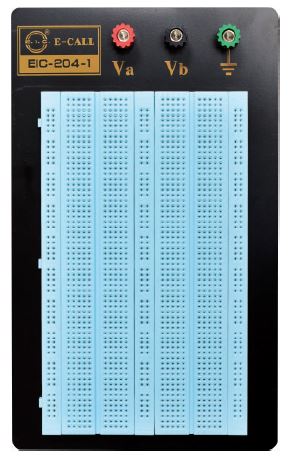

    • 1660Tie-point

    Specifications

    • Round hole
    • POM (Silicone) plastic, blue color
    • Heat distortion temperature: 150℃
    • Metal plate 215x130x0.8mm
    • Board 165.1x109.3x8.5mm
    • 2 Terminal strips, 1260 tie-point
    • 4 Distribution strip, 400 tie-point
    • 3 Binding posts
    • 5 Cushions
